SharePoint 2013 Design Packages: Import with PowerShell (Part 2 of 2)

February 18, 2013 · Ingo Karstein

SharePoint 2013 PowerShell Design Packages Walkthrough

Last Thursday I wrote about “Exporting SharePoint 2013 Design Packages with PowerShell”. Today I’d like to show you the import function. This functions can be used to handle with SharePoint 2013 Design Packages with PowerShell, e.g. in deployment scenarios. Therefore it should by very useful. (I hope so ;-) ) FEEDBACK WELCOME!!!

You can download the scripts here:

http://gallery.technet.microsoft.com/Export-and-Import-0f41b376

Here you can find the blog article about “Export-SPDesignPackage”: https://blog.kenaro.com/2013/02/14/sharepoint-2013-design-packages-export-with-powershell-part-1-of-2

The import function is called “Import-SPDesignPackage” and here are the details:

Import-SPDesignPackage

Here are some samples

#First sample

Import-SPDesignPackage -SiteUrl "http://sharepoint.local/publishing" -ImportFileName "C:\temp\publishing2.wsp" -PackageName "P2" -Apply $true

#Second sample


(
    @{ SiteUrl ="http://sharepoint.local/sites/publishing1";
       ImportFileName ="C:\temp\publishing1.wsp";
       PackageName ="P1";
       Apply=$true
    },
    @{ SiteUrl ="http://sharepoint.local/sites/publishing2";
       ImportFileName ="C:\temp\publishing2.wsp";
       PackageName ="P2";
       Apply=$true
    }
) | New-ObjectFromHashtable | Import-SPDesignPackage

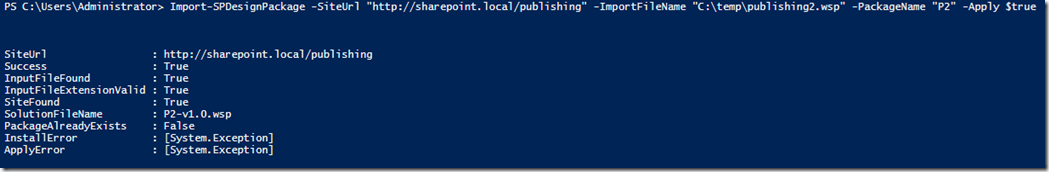

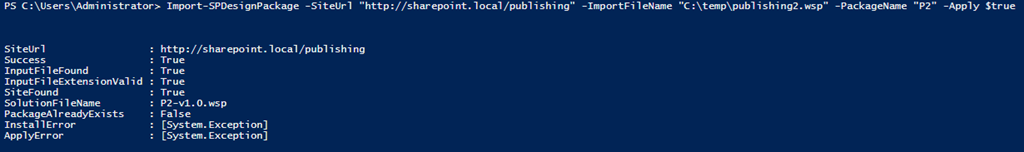

The first sample shows you how to import one design package to a dedicated site. By using the “Apply” parameter the design package will be applied to the site immediately.

The second sample shows you hot to import two different packages to two different site collections. In the sample I use a hashtable for input parameters. They are assigned to the function parameters by “property name binding”. See “http://technet.microsoft.com/en-us/library/hh847743.aspx”: Section “ValueFromPipelineByPropertyName”:

[…]

For example, if the function has a ComputerName parameter, and the
piped object has a ComputerName property, the value of the ComputerName
property is assigned to the ComputerName parameter of the function.

The following example declares a ComputerName parameter that is
mandatory and accepts input from the ComputerName property of the
object that is passed to the function through the pipeline.

[…]

Some more details about that. Skip it if you are not interested…

This “property name binding” does not work with hashtables. Therefore I created a helper function “New-ObjectFromHashtable” that creates a PowerShell object (“PSObject”). This function is generic. (It’s also included in the script files.)

On the one hand with “new-object System.Management.Automation.PSObject” you can create a new “empty” PowerShell object that can be used in your script as every other object, e.g. a SharePoint object like an instance of class SPSite. With cmdlet “Add-Member” you can add new members to the object. – On the other hand you have a hashtable with named values. You can access the collection of names = keys and with each key you can access the value. – Let’s combine it: You can iterate through the keys collection and create a new member in an empty PSObject instance.

functionNew-ObjectFromHashtable { #written by Ingo Karstein (https://blog.kenaro.com)# v1.0#Use this function to convert a hashtable to a PowerShell object ("PSObject"), e.g. for using hashtables for property name binding in# PowerShell pipelines [CmdletBinding()] param( [parameter(Mandatory=$true, Position=1, ValueFromPipeline=$true)] [Hashtable] $Hashtable ) begin { $results= @() } process { $r=new-objectSystem.Management.Automation.PSObject$Hashtable.Keys | % { $key=$_$value=$Hashtable[$key] $r | Add-Member-MemberTypeNoteProperty-Name$key-Value$value-Force } $results+=$r } end { $results } }

The resulting object can be passed to each “property name binding” enabled cmdlet. – The PowerShell engine tries to match input object property names and cmdlet parameter names. If there is a match the input object property value gets assigned to the cmdlets input parameter.

The cmdlet can also convert a list of hashtables to a list of objects. That is used in the “Import-SPDesignPackage” script.

Parameters

Parameter Name	Parameter Set Name	Mandatory?	Position	Description
SiteUrl	Default	Yes	0	Site Url for import
Site	Site	Yes	0	SPSite object for import
ImportFileName	DefaultSite	Yes	1	Filename and path of the design package for import
Apply	DefaultSite	Yes	2	$true = Apply the design package after import$false = Only install the design package for later activation
PackageName	DefaultSite	No	3	Package name. If not specified it uses the file name without extension. The package name will be used for naming the imported file in the solution gallery of the site collection
MajorVersion	DefaultSite	No	-	Version number of the design package. If not specified it uses “1” for the major version.
MinorVersion	DefaultSite	No	-	Version number of the design package. If not specified it uses “0” for the minor version.

The function returns an object for each processed (or not processed) site collection:

Object Property	Description
SiteUrl	Url of the processed site
Success	$true = Import and “Apply” (if specified) was successful
InputFileFound	$true = File found$false = File not found
InputFileExtensionValid	$true = Input file has extension “.wsp”$false = Input file hat not extension “.wsp”
SiteFound	$true = The specified site was found
SolutionFileName	The name of the solution is auto generated from package name or file name and major and minor version number. This is the name of the package in the site collections solution gallery.
PackageAlreadyExsits	$true = the solution does already exist in the solution gallery.

Some additions

The import process requires the package to be stored inside the site collection before the the last input step. Therefore the function creates a folder named “tmp_importspdesignpackage_15494B80-89A0-44FF-BA6C-208CB6A053D0” in the site collections root web root folder. In this folder the package gets uploaded. From the location the package is imported. The folder will be deleted after successful or not failed import.

13 comments

@SPJeff Feb 18, 2013

great use of Hashtable in second example, thx!

Vaibhav Chopra Mar 18, 2013

This doesnot work with Windows Server R2 SP1. I get the following error: Import-SPDesignPackage : The term 'Import-SPDesignPackage' is not recognized as the name of a cmdlet, function, script file, or operable program. Check the spelling of the name, or if a path was included, verify that the path is correct and try again. Any ideas? :)

Vaibhav Chopra Mar 18, 2013

My Bad! Premature reply. I assumed that the "import-SPDesignPackage" command is provided as a part of the Snapin. After downloading the script, it works like a charm. Thanks a ton. It saved a lot of effort. Cheers!

Dominic Sep 9, 2013

Hi, I got an error, if I want to import a designpackage to an TopicArea Template... System.Management.Automation.MethodInvocationException: Exception calling "Install" with "3" argument(s): "Ein Ereignisempfänger hat die Anforderung abgebrochen." ---> Microsoft.SharePoint.SPException: Ein Ereignisempfänger hat die Anforderung abgebrochen. ---> System.Runtime.InteropServices.COMException: 0x81020089Ein Ereignisempfänger hat die Anforderung abgebrochen. at Microsoft.SharePoint.Library.SPRequestInternalClass.PutFile(String bstrUrl, String bstrWebRelativeUrl, Object punkFile, Int64 cbFile, Object punkSPFileMgr, Object punkFFM, Int64 PutFileOpt, String bstrCreatedBy, String bstrModifiedBy, Int32 iCreatedByID, Int32 iModifiedByID, Object varTimeCreated, Object varTimeLastModified, Object varProperties, String bstrCheckinComment, String bstrLockIdMatch, String bstEtagToMatch, Int32 lockType, String lockId, Int32 minutes, Int32 fRefreshLock, Int32 bValidateReqFields, Guid gNewDocId, SPFileSaveParams sfsp, SPFileInfo& pFileProps, UInt32& pdwVirusCheckStatus, String& pVirusCheckMessage, String& pEtagReturn, Byte& piLevel, Int32& pbIgnoredReqProps) at Microsoft.SharePoint.Library.SPRequest.PutFile(String bstrUrl, String bstrWebRelativeUrl, Object punkFile, Int64 cbFile, Object punkSPFileMgr, Object punkFFM, Int64 PutFileOpt, String bstrCreatedBy, String bstrModifiedBy, Int32 iCreatedByID, Int32 iModifiedByID, Object varTimeCreated, Object varTimeLastModified, Object varProperties, String bstrCheckinComment, String bstrLockIdMatch, String bstEtagToMatch, Int32 lockType, String lockId, Int32 minutes, Int32 fRefreshLock, Int32 bValidateReqFields, Guid gNewDocId, SPFileSaveParams sfsp, SPFileInfo& pFileProps, UInt32& pdwVirusCheckStatus, String& pVirusCheckMessage, String& pEtagReturn, Byte& piLevel, Int32& pbIgnoredReqProps) May you can check this problem?? I'm a powershell newbe :( and I can't read your function :D

Douglas Jan 24, 2014

I have the same issue. Did you get a solution for this error with Exception calling “Install” with “3″ argument(s)

Neeraj Mar 24, 2014

I was able to resolve the "The Install with 3 arguments error" by using the farm account to run the powershell...initially I tried to run the powershell with farm install account that doesn't have farm admin access....Following are the steps I followed: 1\. Run install-module powershell command to install the powershell function provided by this powershell 2\. Run the Import-SPDesignPackae command with right parameters Everything worked like a charm....we are about to commence the migration of our entire 2010 farm to 2013 version which has 5 Web Apps and loads of site collectios....I can now traverse through all site collections and use this awesome powershell to apply the revamped branding to all site collections

Santhosh Dec 30, 2013

I am getting the following error in search template site collection. please do the needful. System.Management.Automation.MethodInvocationException: Exception calling "Install" with "3" argument(s): "An event receiver has canceled the request." \---> Microsoft.SharePoint.SPException: An event receiver has canceled the request. ---> System.Runtime.InteropServices.COMException: 0x81020089An event receiver has canceled the request. at Microsoft.SharePoint.Library.SPRequestInternalClass.PutFile(String bstrUrl, String bstrWebRelativeUrl, Object punkFile, Int64 cbFile, Object punkSPFileMgr, Object punkFFM, Int64 PutFileOpt, String bstrCreatedBy, String bstrModifiedBy, Int32 iCreatedByID, Int32 iModifiedByID, Object varTimeCreated, Object varTimeLastModified, Object varProperties, String bstrCheckinComment, String bstrLockIdMatch, String bstEtagToMatch, Int32 lockType, String lockId, Int32 minutes, Int32 fRefreshLock, Int32 bValidateReqFields, Guid gNewDocId, SPFileSaveParams sfsp, SPFileInfo& pFileProps, UInt32& pdwVirusCheckStatus, String& pVirusCheckMessage, String& pEtagReturn, Byte& piLevel, Int32& pbIgnoredReqProps) at Microsoft.SharePoint.Library.SPRequest.PutFile(String bstrUrl, String bstrWebRelativeUrl, Object punkFile, Int64 cbFile, Object punkSPFileMgr, Object punkFFM, Int64 PutFileOpt, String bstrCreatedBy, String bstrModifiedBy, Int32 iCreatedByID, Int32 iModifiedByID, Object varTimeCreated, Object varTimeLastModified, Object varProperties, String bstrCheckinComment, String bstrLockIdMatch, String bstEtagToMatch, Int32 lockType, String lockId, Int32 minutes, Int32 fRefreshLock, Int32 bValidateReqFields, Guid gNewDocId, SPFileSaveParams sfsp, SPFileInfo& pFileProps, UInt32& pdwVirusCheckStatus, String& pVirusCheckMessage, String& pEtagReturn, Byte& piLevel, Int32& pbIgnoredReqProps) \--- End of inner exception stack trace --- at Microsoft.SharePoint.SPGlobal.HandleComException(COMException comEx) at Microsoft.SharePoint.Library.SPRequest.PutFile(String bstrUrl, String bstrWebRelativeUrl, Object punkFile, Int64 cbFile, Object punkSPFileMgr, Object punkFFM, Int64 PutFileOpt, String bstrCreatedBy, String bstrModifiedBy, Int32 iCreatedByID, Int32 iModifiedByID, Object varTimeCreated, Object varTimeLastModified, Object varProperties, String bstrCheckinComment, String bstrLockIdMatch, String bstEtagToMatch, Int32 lockType, String lockId, Int32 minutes, Int32 fRefreshLock, Int32 bValidateReqFields, Guid gNewDocId, SPFileSaveParams sfsp, SPFileInfo& pFileProps, UInt32& pdwVirusCheckStatus, String& pVirusCheckMessage, String& pEtagReturn, Byte& piLevel, Int32& pbIgnoredReqProps) at Microsoft.SharePoint.SPFileCollection.AddStreamOrBytesInternal(String urlOfFile, Stream file, Int64 fileSizeToSave, SPFileStreamManager spmgr, PutFileOpt fileOpt, String createdBy, String modifiedBy, Int32 createdByID, Int32 modifiedByID, DateTime timeCreated, DateTime timeLastModified, Object varProperties, String checkInComment, Stream formatMetadata, String lockIdMatch, String etagToMatch, SPLockType lockType, String lockId, TimeSpan lockTimeout, Boolean validateRequiredFields, SPVirusCheckStatus& virusCheckStatus, String& virusCheckMessage, String& etagNew, Boolean& ignoredRequiredProps) at Microsoft.SharePoint.SPFileCollection.Add(String urlOfFile, Stream file, Boolean overwrite, String checkInComment, Boolean checkRequiredFields) at Microsoft.SharePoint.SPFileCollection.Add(String urlOfFile, Stream file, Boolean overwrite) at Microsoft.SharePoint.Publishing.DesignPackage.c\_\_DisplayClass1.b\_\_0() at Microsoft.SharePoint.SPSecurity.c\_\_DisplayClass5.b\_\_3() at Microsoft.SharePoint.Utilities.SecurityContext.RunAsProcess(CodeToRunElevated secureCode) at Microsoft.SharePoint.SPSecurity.RunWithElevatedPrivileges(WaitCallback secureCode, Object param) at Microsoft.SharePoint.SPSecurity.RunWithElevatedPrivileges(CodeToRunElevated secureCode) at Microsoft.SharePoint.Publishing.DesignPackage.Install(SPSite site, DesignPackageInfo info, Stream data) at Microsoft.SharePoint.Publishing.DesignPackage.Install(SPSite site, DesignPackageInfo info, String path) at CallSite.Target(Closure , CallSite , RuntimeType , Object , Object , Object ) \--- End of inner exception stack trace --- at System.Management.Automation.ExceptionHandlingOps.CheckActionPreference(FunctionContext funcContext, Exception exception) at System.Management.Automation.Interpreter.ActionCallInstruction\`2.Run(InterpretedFrame frame) at System.Management.Automation.Interpreter.EnterTryCatchFinallyInstruction.Run(InterpretedFrame frame) at System.Management.Automation.Interpreter.EnterTryCatchFinallyInstruction.Run(InterpretedFrame frame)

Neeraj Mar 24, 2014

This is awesome stuff! Thanks heaps!

Nk May 12, 2014

How can I Import a Design Package toa sub site (not site collection)

ikarstein May 17, 2014

this is not possible. design packages are user solutions. that are always installed to the site collection solution galery.

George Aug 11, 2014

"design packages are user solutions", will it thereby be treated as sandboxed, concerning draft-level?

Yuvaraj Oct 6, 2016

Hi, I am getting this error. please help me, quiet urgent. Whether i need to install or upgrade? or add dll?? The term 'Import-SPDesignPacakage' is not recognized as the name of a cmdlet, function, script file, or operable program. Check the spelling of the name, or if a path was included, verify that the path is correct and try again.

Yuvaraj Oct 7, 2016

The term 'Import-SPDesignPackage' is not recognized as the name of a cmdlet, function, script file, or operable program. Check the spelling of the name, or if a path was included, verify that the path is correct and Please help me to resolve this issue
